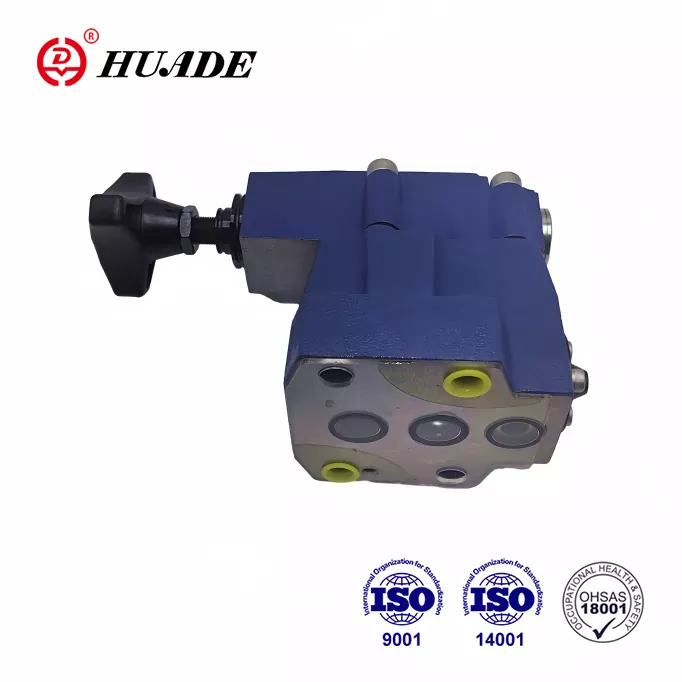

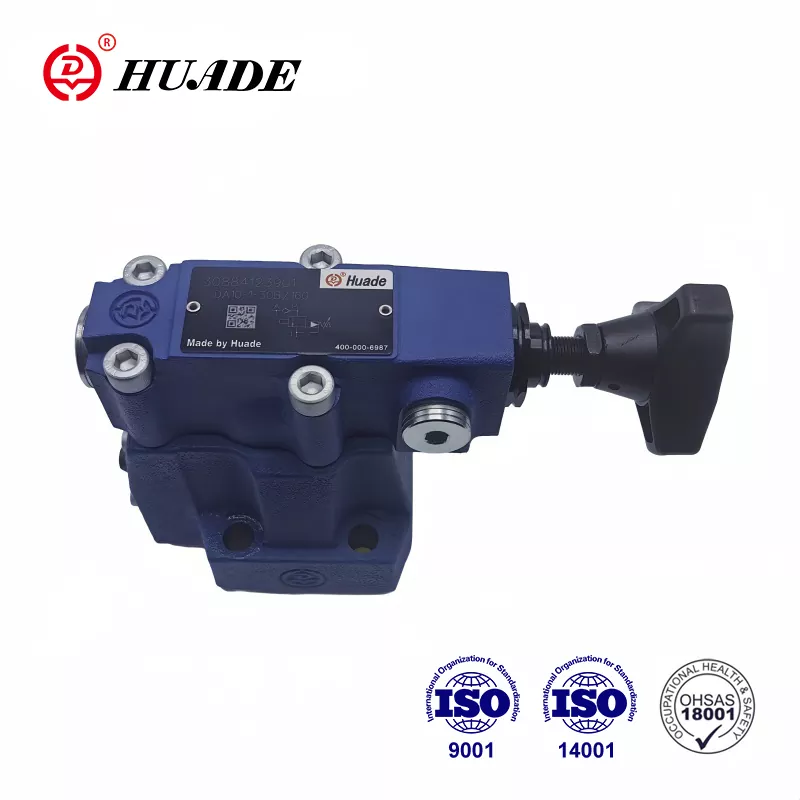

ຄວາມກົດດັນປິດ Valve da

As a leading brand in China's hydraulic industry, Huade® hydraulic pressure valves are favored by the market for their quality comparable to first-tier brands with more affordable prices. Huade® pressure relief valve DA can replace the series products offered by Rexroth due to two long-term cooperation. All branches of the enterprise have passed the three major national system certifications, namely, ISO9001, ISO14001 and OH SAS18001. Huade Hydraulic has introduced more than 750 advanced equipment from all over the world. It also has a good inspection system to ensure the superior performance of each pressure valve.

Product parameter of Pressure Shut-off Valve DA

Product Feature And Application of Pressure Shut-off Valve DA

Features:

▶ For subplate mounting:

▶ 4 adjustment elements:

● Rotary knob

● Sleeve with internal hexagon and protective cap

● Lockable rotary knob with scale

● Rotary knob with scale

▶ 3 pressure ratings

▶ Solenoid actuated unloading via a built-in directional valve

Function, Section And Symbols of Pressure Shut-off Valve DA

Pressure control valves type DA are pilot operated pressure shut-off valves. They are used to switch a pump flow over to unpressurised by-pass as soon as the accumulator loading pressure is reached. Further applications for the valve are in systems that have high and low pressure pumps. In this case the low pressure pump is switched to unpressurised by-pass as soon as the set high pressure is reached.

Pressure shut off valves DA basically consist of the main valve with the main spool assembly, pilot valve with pressure adjustment element and check valve. In size 10 valves, the check valve is built into the main valve. In valve sizes 25 and 32 the check valve is built into a separate plate installed under the main valve.

Pressure shut-off valve type DA

Diverting pump flow from P to A or P to T.

The pump delivers flow via check valve (1) into the hydraulic system (P to A). Pressure in port A acts via pilot line (3) on the pilot control spool (4). At the same time, pressure in port P passes via orifices (5) and (7) to the spring loaded side of the main spool (6) and poppet (8) in the pilot valve (2). As soon as the set cut-off pressure in the hydraulic system is reached, the poppet(8) lifts off against spring(9). Pressure fluid now flows via orifices(5) and(7) into spring chamber(11). From

here, the fluid is returned to tank either internally via control line in valve type DA...30B/... or externally via control line in valve type DA.30B/..Y... Due to orifices(5) and (7), a pressure drop is now present at the main spool (6). The main spool(6) now lifts off its seat and opens the connection from P to T. The check valve(1) now doses the connection from A to P. The poppet(8) is now held open by the system pressure via pilot spool (4).

Diverting pump flow from P to Tor P to A.

The area of the pilot spool (4) is 17% greater than effective area of the poppet(8). The effective force on the pilot spool (4) is, therefore, 17% greater than the effective force on the poppet (8) . When the actuator pressure falls in relation to the cut-off pressure by a valve which corresponds to the switching pressure differential, spring(9) pushes poppet(8) on to its seat. Pressure is then built up on the spring loaded side of the main spool(6).In conjunction with spring(10), this closes the main spool(6) and isolates the connection from P to T. The pump flow passes once more via the check valve (1) into the hydraulic system(P to A).

structure of DA10...30B

Symbols of DA...30B
